Fully automatic clamshell thermoforming machine

    Unit Price: USD 24500 - 30000 / Set/Sets
    Payment Type: L/C,Money Gram,Western Union
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: HX-71H

Automation: Automatic

Raw Material: PVC

Shaping Mode: Die Molding

Application: Machinery & Hardware, Food & Beverage, Medical, Toys, Commodity, Textiles, Chemical, Apparel, Suitable For PVC, PE, PET, PETG, PP, PC, Etc

Driven Type: Electric

Size: The Color And Size Of The Machine Can Be Customized

Features: Independently Grouped Temperature Controlled.

Computerized: Non-Computerized

Additional Info

Packaging: Wooden case

Productivity: 200 set/sets per year

Brand: HENGXING

Transportation: Ocean,Land

Place of Origin: Yonghong road 43 Liulian Fumin industrial zone, Pingdi Town,Longgang, Shenzhen, Guangdong, China

Supply Ability: If it is urgent,trying our best to shorten the time and the fastest is 25 days

HS Code: 8477409000

Port: Shenzhen,Guangzhou

Product Description

Fully automatic clamshell thermoforming machine applications

This automatic clamshell thermoforming machine for PVC is used for the surface convex concave type of some workpieces to attach PVC. Which is widely used in doors, furniture, cabinets, speakers, decorative materials, building materials, art, advertising materials processing industry.


Fully automatic clamshell thermoforming machine features

1. The clamshell thermoforming machine for PVC main structure consists of feeding, drawing, electric heating furnace, lower gate, multi-function adjustable size, lower die plate, upper die, upper gate, knife gate, slice, discharging and vacuum device.

2. The vacuum clamshell thermoforming machine for PVC adopts auto push style furnace, move steadily, suitable for environmental materials.

3. Double row needle chain transmission, high-speed operation is stable, flexible width adjustment device, can make the machine more maximum use of film, improve product quality, reduce material loss.

4. Independently grouped temperature controlled..


Fully automatic clamshell thermoforming machine

Fully automatic clamshell thermoforming machine


Suitable materials

Suitable materials

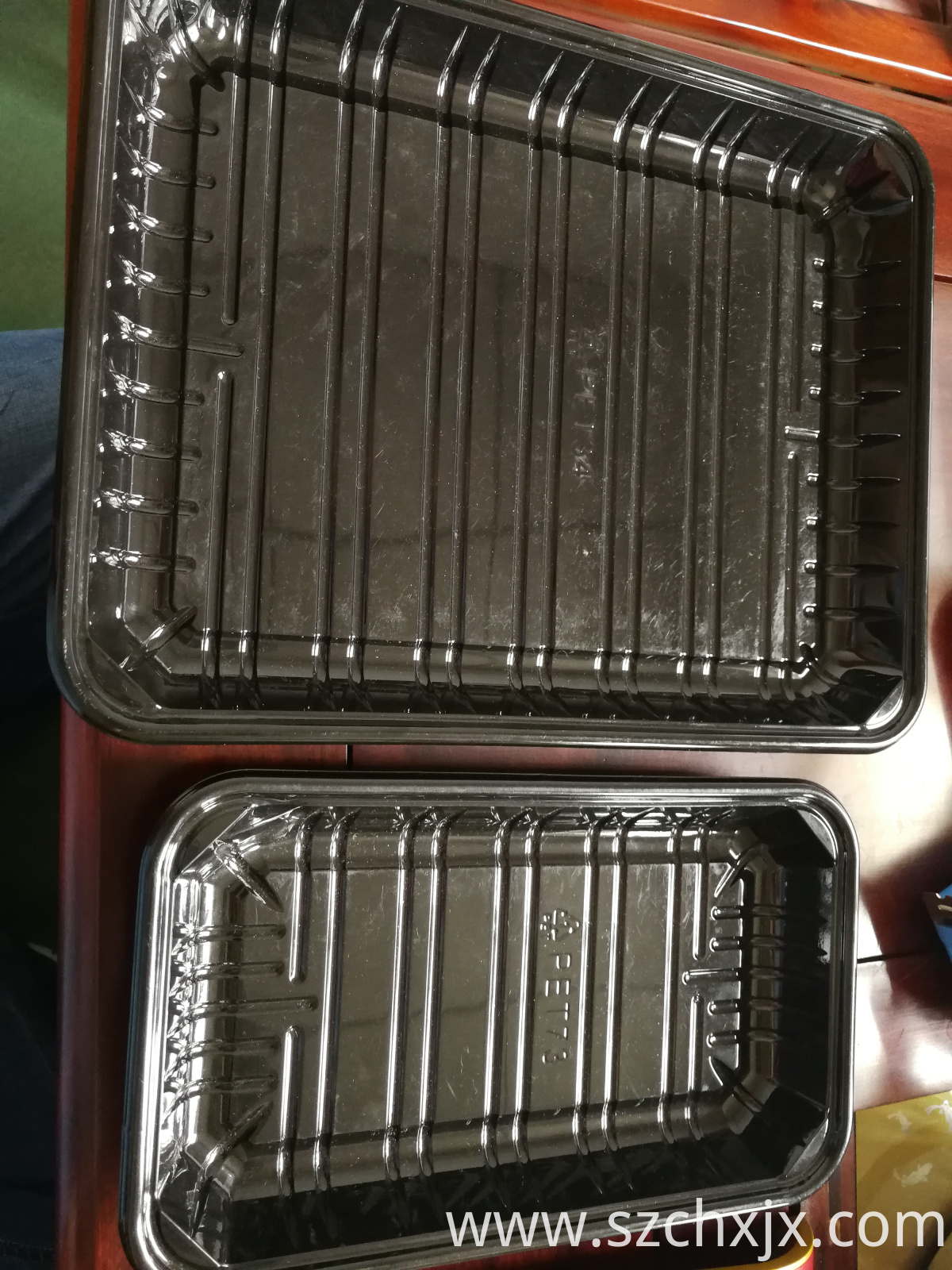

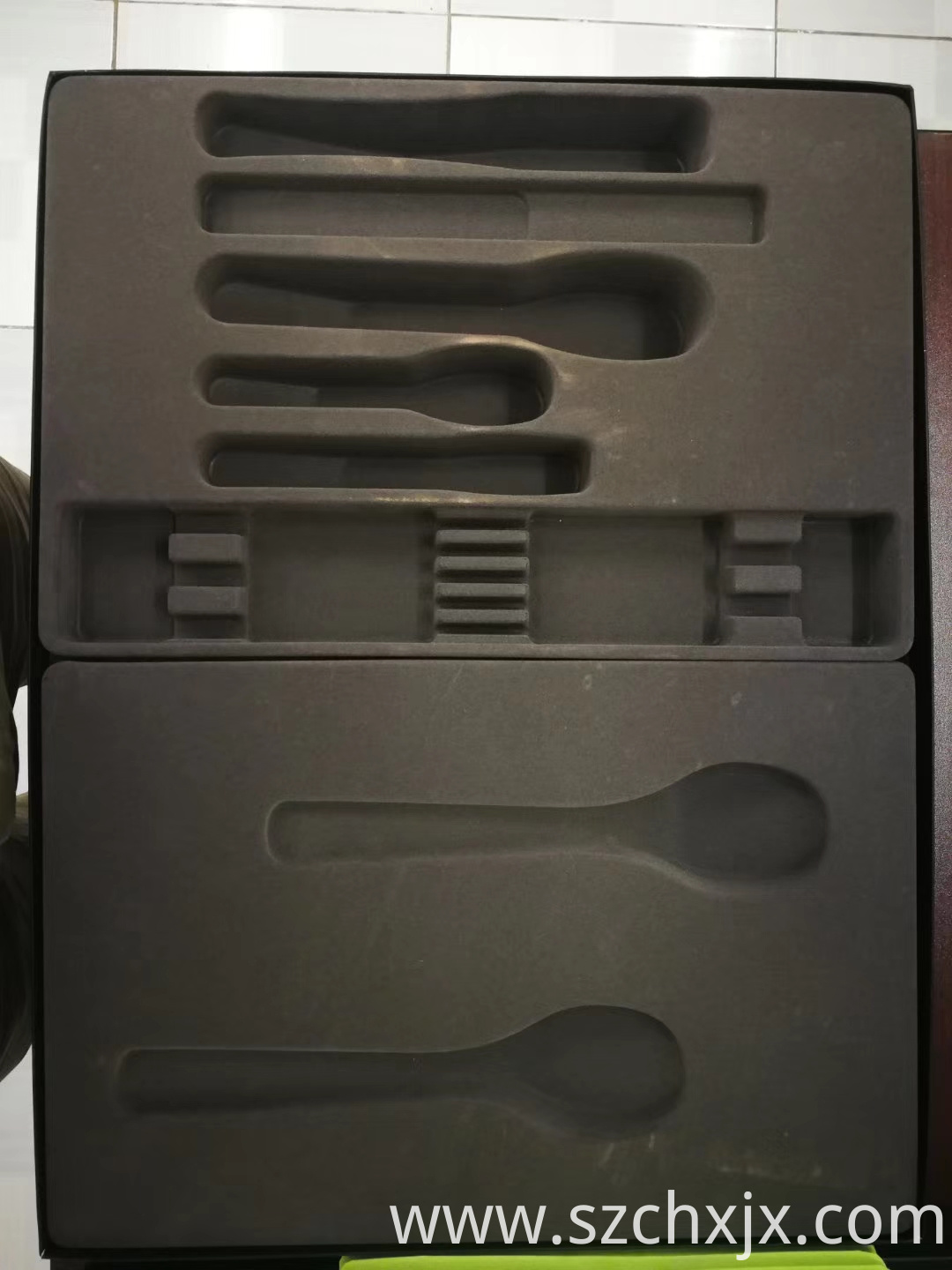

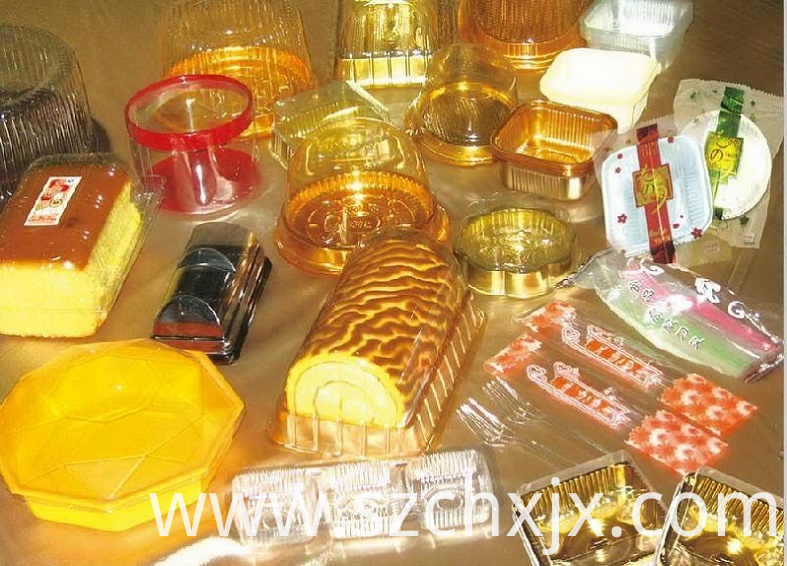

Molding and Samples

Molding and SamplesMolding and SamplesMolding and Samples

Molding and SamplesMolding and Samples


About our factory

About our factory

Shenzhen Hengxing Machinery Factory specializing in the production of Blister Forming Machine, high frequency plastic welding machine,Vacuum Forming Machine Blister Sealing Machine, Blister Folding Machine,Blister Punching Machine and Shrink Packing Machine and other machines. As one of the major industrial brands, HENGXING offers R&D, manufacture, sales one stop service .Since its inception, HENGXING has grown with its business partners and absorbed foreign advanced technology and experience and with our unique innovation idea and constantly make improvement of production, and we get lots of praise from customers at home and abroad. HENGXING is one of the leading brand in this area.
Located in developed economy and convenient transportation Longgang District Shenzhen. HENGXING, with its internal complete management system, serve our customer with advanced technology, professional skills and thought-full after-sales service. HENGXING always value customer`s feedback and grab the market dynamics, and constantly improve product quality and develop new product.
"Unity, dedication, innovation and development" is the main spirit of HENGXING, "Integrity-based, quality first" is our business principles. HENGXING is committed to offer customers a stable quality products in a reasonable price.


Our advantages

Our advantages

1. 24 hours online answer for customer service personnel.
2. One year warranty.
3. The operation and operation of the machine can be watched on the spot.
4. View our factory on the spot.
5. We have been engaged in plastic suction machine for more than 20 years, and have rich experience.
6. Our machines are highly efficient and low consumption.


Packing and Delivery

Packing and Delivery


Overview
Quick Details
Condition: New
Type: Blister Forming Machine
Plastic Type: PVC, PE, PET, PETG, PP, PC, PS, HIPS, APET etc
Product Type: Blister
Automatic: Yes
Place of Origin: Guangdong, China (Mainland)
Brand Name: HENGXING
Model Number: HX-71H
Voltage: AC380
Power(W): 30.0KW
Weight: 3000KG
Dimension(L*W*H): 7490*1770*2700mm
After-sales Service Provided: Engineers available to service machinery overseas
Color: Green and White
Vacuum pump: 100m³/H
SupplyAbility
SupplyAbility: 60 set/sets per Year High quality Fully Automatic Plastic Blister Forming Machine
Packaging & Delivery
Packaging Details: Wooden case
Port: Guangzhou or Shenzhen
Lead Time : 30days



Fully automatic clamshell thermoforming machine parameters

Model

HX-71H

Power supply

AC380 50/60HZ

Power

30.0KW

Forming length

1250mm

Forming width

420~760mm(adjustable)

Productivity

1~10times/min

Thickness of material

0.1~0.15mm

Machine size

7490*1770*2700mm

N. weight

3000KG


Imported famous accessories parameters

Configuration Advantage

1

Vacuum pump

Germany Rietschle 100m³/H

2

Cooling-water machine

Japanese Dongyang

3

Frequency converter

Japan MITSUBISHI

4

Touch screen

Taiwan Delta

5

PLC

Taiwan Delta

6

Solenoid valve

Japan CKD

7

Lubricating filter

Japan CKD

8

Straight through valve

Italy CEME

9

Contactor

Korea JS

10

Air switch

Korea JS

11

Encoder

Japan NEMICON

12

Voltage regulator

Hong Kong AOYI

13

Heat transfer

Hong Kong AOYI

14

Cylinder

ZHICHENG


FAQ

1.If I order this machine, and how can l learn to operate it? Do you offer any help? Would it be charged?
Answer: Shenzhen Hengxing Machinery Factory will provide our after sales service to our customers. Once you get the machine, meanwhile you will get our operation instruction which would detailed explain all about the machine operation. Besides, our operation video is available for your operation reference. If either instruction or video can not help you, and we will arrange the our engineer contact you via international telephone conference
or via face to face mutual video conference.

All above service is free.
The service cost in customers` country was not included if requires oversea service.

2.About The Warranty:
Answer: One year warranty. Within one year, the initial parts or elements of the machine broke down cause by the raw material and our hand work, Shenzhen Hengxing Machinery Factory would replace the parts freely, but the freight charge and the consumable parts like die, cutting mould were not included. The warranty is not valid if the machine damage due to customers` wrong operation or caused by force majeure factors.

3.How to order raw material ?
Answer: We can help you to find raw material supplier, and also we can help you to order if need. And if possible, we will arrange the machine and the raw material sending to you together.

4..Do you have any other model ?
Answer: Of course . We have different choice for you, and if all our models that`s not what you want, and you can tell us your details and we can custom make for you. Or OEM is available.

5.What is the power supply?
Answer : Normally, there are 220v and 380v, and if you need other choice, just tell us, and we can custom make for you. Or OEM is available.

6.Is this machine need a mould ? Then what kind of mould should it be? How can I sure the mould is what I need?
Answer: Yes, it needs mould, Cost will be base on the size.



Looking for ideal Automatic Clamshell Thermoforming Machine for PVC Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Clamshell Thermoforming Machine for PVC are quality guaranteed. We are China Origin Factory of Vacuum Clamshell Thermoforming Machine for PVC. If you have any question, please feel free to contact us.
