New style fully automatic blister forming machine

    Unit Price: USD 25500 - 31000 / Set/Sets
    Payment Type: L/C,Money Gram,Western Union
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: HX-76HD

Function: PLC Computer Touch Screen Control

Size: Length And Width Can Be Adjusted Flexibly

Capability: Data Can Be Stored, And Data Can Be Transferred Directly Through The Second Time Adjustment.

Automation: Automatic

Raw Material: PVC

Shaping Mode: Die Molding

Application: Machinery & Hardware, Food & Beverage, Medical, Toys, Commodity

Driven Type: Electric

Computerized: Computerized

Additional Info

Packaging: Wooden case

Productivity: 60 set/sets per year

Brand: HENGXING

Transportation: Ocean,Land

Place of Origin: Yonghong road 43 Liulian Fumin industrial zone, Pingdi Town,Longgang, Shenzhen, Guangdong, China

Supply Ability: If it is urgent,trying our best to shorten the time and the fastest is 25 days

HS Code: 8477409000

Port: Shenzhen,Guangzhou

Product Description

New style Fully Automatic Blister Forming Machine applications

This Blister Forming Machine is adapted for PVC, PP, PET, PEGT, OPP, POF, PS, ABS etc, it can transform plastic sheets into various plastic blisters. Different forming moulds enable to have different forming shapes.These blisters are widely used in hardware, stationery, commodity, electronic products, health products, disposable cups etc.

It is a Fully Automatic Plastic Blister Forming Machine, can work 24 hours continuously, mainly used in blister mass production.

New style fully Automatic Blister Forming Machine features

1.Auto feed material, can save labor, also can increase weight of roll material, that will reduce the number of replacement materials.

2.Auto spray mold-release agent.
3.Thermal baffle with water cooling system, no deformation when machine works.
4.Import stainless steel rail, strong and reliable. More stable even use thin material such as 0.15mm. Can save more material.
5. The Blister Vacuum Forming Machine adopts auto push style furnace, move steadily, suitable for environmental materials.
6.You can turn off some heating elements when roll material is narrow, that will save power.
7.The cooing fan is controlled by inverter, volume of the wind can be adjusted easily.
8.Feeding system uses MITSUBISHI INVERTER, tolerance should be ±2mm.
9.Cutting system uses rodless cylinder, smoothly and stable when cutting.
10.50 pieces of solid state temperature controllers which match 50 pieces of heating elements accordingly. Can reach exact temperature within 5 minutes. Steady temperature can assure high quality of product when use PP or other environmental materials.

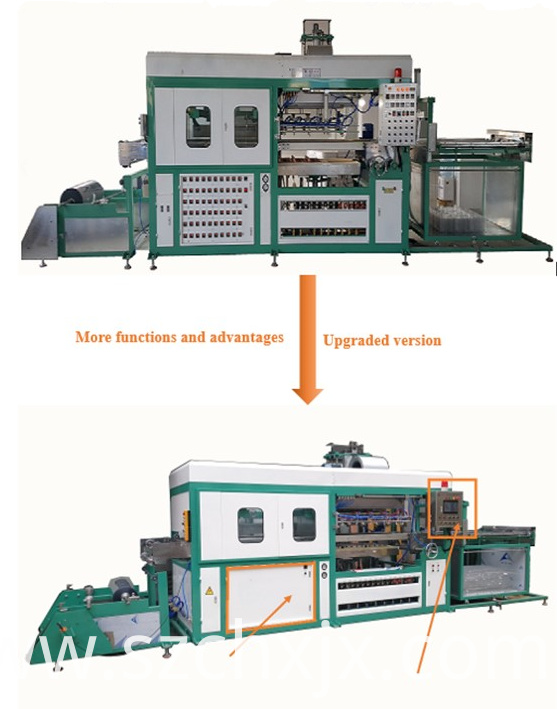

The diferences bwteen HX-76HD and HX-76HZ

The diferences bwteen HX-76HD and HX-76HZ


The advantages of HX-76HD: 1. PLC touch screen control.

2. Data can be stored, and data can be transferred directly through the second time adjustment.

3. Production is faster and more efficient.

4. Greatly reduced the loss of the test sheet.


Our advantages

Shenzhen Hengxing Machinery Factory was established in 2003, is a Blister Forming Machine, High Frequency Welding Machine and Vacuum Forming Machine and other machines manufacturer. Which is located at Yonghong road 43 Liulian Fumin industrial zone, Pingdi Town,Longgang, Shenzhen, Guangdong, China

We are the leading manufacturer that specializes in designing and manufacturing different kinds of Blister Forming Machine, High Frequency Welding Machine and Vacuum Forming Machine with the experience of more than 15 years, Our products hold high reputation by the clients in the world wide with the high quality and favorable price.

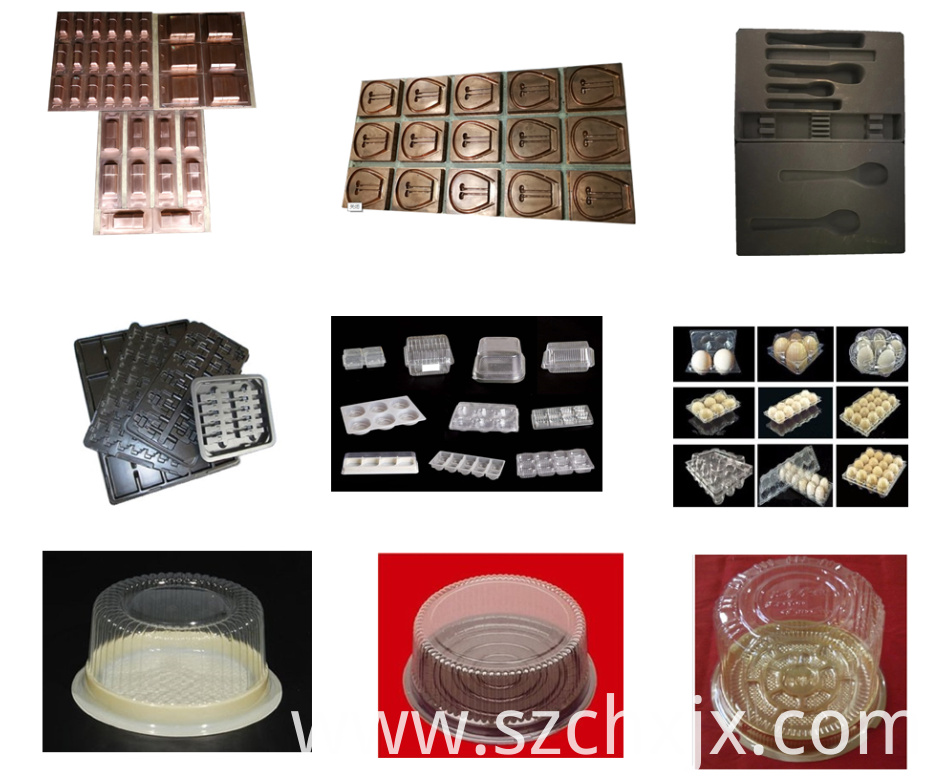

Molding and Sampls

Molding and Samples

Overview
Quick Details
Condition: New
Type: Blister Forming Machine
Plastic Type: PVC
Product Type: Blister
Automatic: Yes
Place of Origin: Guangdong, China (Mainland)
Brand Name: HENGXING
Model Number: HX-76HD
Voltage: AC380
Power(W): 30.0KW
Weight: 3000KG
Dimension(L*W*H): 7490*1770 *2700mm
After-sales Service Provided: Engineers available to service machinery overseas
Color: Green and White
Vacuum pump: 100m³/H
SupplyAbility
SupplyAbility: 60 Set/Sets per Year
Packaging & Delivery
Packaging Details: Wooden case
Port: Guangzhou or Shenzhen
Lead Time : 30 days


New style fully automatic blister forming machine parameters

Model
HX-76HD
Power supply
AC380 50/60HZ
Power
30.0KW
Forming length
1250mm
Forming width
420~760mm(adjustable)
Productivity
1~10times/min
Thickness of material
0.1~0.15mm
Machine size
7490*1770*2700mm
N. weight
3000KG

Configuration Advantage
1 Vacuum pump Germany Rietschle 100m³/H
2 Cooling-water machine Japanese Dongyang
3 Frequency converter Japan MITSUBISHI
4 Touch screen Taiwan Delta
5 PLC Taiwan Delta
6 Solenoid valve Japan CKD
7 Lubricating filter Japan CKD
8 Straight through valve Italy CEME
9 Contactor Korea JS
10 Air switch Korea JS
11 Encoder Japan NEMICON
12 Voltage regulator Hong Kong AOYI
13 Heat transfer Hong Kong AOYI
14 Cylinder ZHICHENG

Packing & Delivery

Packing & Delivery


Oversea Service

1. Kyrgyzstan customer purchased many machines and our engineer went to train the workers.

New style fully automatic blister forming machine

2.Thailand customer purchased many machines and our engineer went to train the workers.

New style fully automatic blister foming machine


FAQ

1.If I order this machine, and how can l learn to operate it? Do you offer any help? Would it be charged?
Answer:Shenzhen Hengxing Machinery Factory will provide our after sales service to our customers. Once you get the machine, meanwhile you will get our operation instruction which would detailed explain all about the machine operation. Besides, our operation video is available for your operation reference. If either instruction or video can not help you, and we will arrange the our engineer contact you via international telephone conference or via face to face mutual video conference.

All above service is free.
The service cost in customers` country was not included if requires oversea service.
2.About The Warranty:
Answer: One year warranty. Within one year, the initial parts or elements of the machine broke down cause by the raw material and our hand work, Shenzhen Hengxing Machinery Factory would replace the parts freely, but the freight charge and the consumable parts like die, cutting mould were not included. The warranty is not valid if the machine damage due to customers` wrong operation or caused by force majeure factors.
3.How to order raw material ?
Answer: We can help you to find raw material supplier, and also we can help you to order if need. And if possible, we will arrange the machine and the raw material sending to you together.
4..Do you have any other model ?
Answer: Of course . We have different choice for you, and if all our models that`s not what you want, and you can tell us your details and we can custom make for you. Or OEM is available.
5.What is the power supply?
Answer : Normally, there are 220v and 380v, and if you need other choice, just tell us, and we can custom make for you. Or OEM is available.
6.Is this machine need a mould ? Then what kind of mould should it be? How can I sure the mould is what I need?
Answer: Yes, it needs mould, Cost will be base on the size.
