Home > Products > Blister Forming Machine > Fully Automatic Blister Forming Machine > Automatic blister thermoforming machine for plastic tray

Automatic blister thermoforming machine for plastic tray

    Unit Price: USD 24500 - 30000 / Set/Sets
    Payment Type: L/C,Money Gram,Western Union
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: HX-71H

Automation: Automatic

Raw Material: ABS

Shaping Mode: Die Molding

Application: Machinery & Hardware, Food & Beverage, Medical, Toys, Commodity, Textiles, Chemical, Apparel, Suitable For Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, Etc

Driven Type: Electric

Size: The Color And Size Of The Machine Can Be Customized

Operation: Easy To Operate And Control

Computerized: Non-Computerized

Additional Info

Packaging: Wooden case

Productivity: 60 set/sets per year

Brand: HENGXING

Transportation: Ocean,Land

Place of Origin: Yonghong road 43 Liulian Fumin industrial zone, Pingdi Town,Longgang, Shenzhen, Guangdong, China

Supply Ability: If it is urgent,trying our best to shorten the time and the fastest is 25 days

HS Code: 8477409000

Port: Shenzhen,Guangzhou

Product Description

Automatic blister thermoforming machine for plastic tray applications

Blister molding is also called thermoplastic molding. This molding process mainly uses vacuum suction produced by vacuum pump to heat and soften PVC, PET, PETG, APTT, PP, PE, PS and other thermoplastic sheets into various shapes of vacuum cover, absorption tray, bubble shell and so on.


Automatic blister thermoforming machine for plastic tray features

1. The blister thermoforming machine for plastic tray has high precision of mechanical action and temperature control, short production time, and can save mechanical power consumption as much as possible under the same production conditions.

2. The design of the plastic thermoforming machine for plastic tray is reasonable, and the material used in the structure is durable and wearable, which can greatly increase the life of the machine and prevent the deformation of the machine.

3. The control board is near the operator, can be operated easily, greatly improve the efficiency of production.

4. The vacuum thermoforming machine for plastic tray is equipped with a cooling system and high-speed transport water spray cold water to make it accelerate the forming speed and forming quality assurance, production twice as fast as conventional machines.


Automatic blister thermoforming machine for plastic tray

Automatic blister thermoforming machine for plastic tray



Suitable materials

Suitable materials

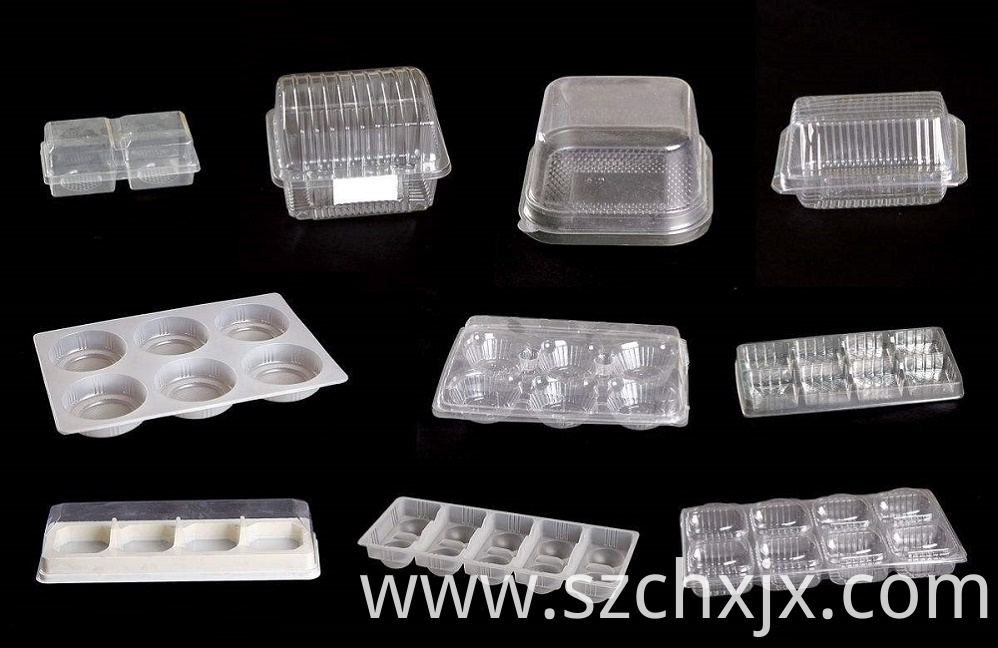

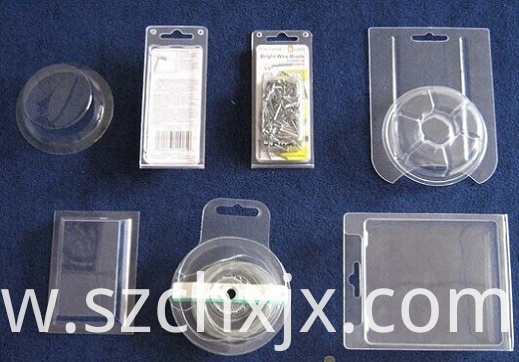

Molding and Samples

Molding and SamplesMolding and SamplesMolding and Samples


About our factory

About our factory

Shenzhen Hengxing Machinery Factory specializing in the production of Blister Forming Machine, high frequency plastic welding machine,Vacuum Forming Machine Blister Sealing Machine, Blister Folding Machine,Blister Punching Machine and Shrink Packing Machine and other machines. As one of the major industrial brands, HENGXING offers R&D, manufacture, sales one stop service .Since its inception, HENGXING has grown with its business partners and absorbed foreign advanced technology and experience and with our unique innovation idea and constantly make improvement of production, and we get lots of praise from customers at home and abroad. HENGXING is one of the leading brand in this area.
Located in developed economy and convenient transportation Longgang District Shenzhen. HENGXING, with its internal complete management system, serve our customer with advanced technology, professional skills and thought-full after-sales service. HENGXING always value customer`s feedback and grab the market dynamics, and constantly improve product quality and develop new product.
"Unity, dedication, innovation and development" is the main spirit of HENGXING, "Integrity-based, quality first" is our business principles. HENGXING is committed to offer customers a stable quality products in a reasonable price.


Oversea service

1. Kyrgyzstan customer purchased our machine and our engineer wnet to train their works.

Oversea Service

2. Thailand customer purchased our machine and our engineer wnet to train their works.

Oversea Service


Our advantages

Our service

1. 24 hours online answer for customer service personnel.

2. One year warranty.

3. View our factory on the spot.

4. We have been engaged in plastic suction machine for more than 20 years, and have rich experience.

5. Our machines are highly efficient and low consumption.

6. Assemble video, Working video, Setting video. Normally, customer can assemble and operate the machine correctly with these manuals and videos.


Packing and Delivery

Packing and Delivery


Overview
Quick Details
Condition: New
Type: Blister Forming Machine
Plastic Type: PVC, PE, PET, PETG, PP, PC, PS, HIPS, APET etc
Product Type: Blister
Automatic: Yes
Place of Origin: Guangdong, China (Mainland)
Brand Name: HENGXING
Model Number: HX-71H
Voltage: AC380
Power(W): 30.0KW
Weight: 3000KG
Dimension(L*W*H): 7490*1770*2700mm
After-sales Service Provided: Engineers available to service machinery overseas
Color: Green and White
Vacuum pump: 100m³/H
SupplyAbility
SupplyAbility: 60 set/sets per Year High quality Fully Automatic Plastic Blister Forming Machine
Packaging & Delivery
Packaging Details: Wooden case
Port: Guangzhou or Shenzhen
Lead Time : 30days



Automatic blister thermoforming machine for plastic tray parameters

Model

HX-71H

Power supply

AC380 50/60HZ

Power

30.0KW

Forming length

1250mm

Forming width

420~760mm(adjustable)

Productivity

1~10times/min

Thickness of material

0.1~0.15mm

Machine size

7490*1770*2700mm

N. weight

3000KG


Imported famous accessories parameters

Configuration Advantage

1

Vacuum pump

Germany Rietschle 100m³/H

2

Cooling-water machine

Japanese Dongyang

3

Frequency converter

Japan MITSUBISHI

4

Touch screen

Taiwan Delta

5

PLC

Taiwan Delta

6

Solenoid valve

Japan CKD

7

Lubricating filter

Japan CKD

8

Straight through valve

Italy CEME

9

Contactor

Korea JS

10

Air switch

Korea JS

11

Encoder

Japan NEMICON

12

Voltage regulator

Hong Kong AOYI

13

Heat transfer

Hong Kong AOYI

14

Cylinder

ZHICHENG


FAQ
1.If I order this machine, and how can l learn to operate it? Do you offer any help? Would it be charged?
Answer: Shenzhen Hengxing Machinery Factory will provide our after sales service to our customers. Once you get the machine, meanwhile you will get our operation instruction which would detailed explain all about the machine operation. Besides, our operation video is available for your operation reference. If either instruction or video can not help you, and we will arrange the our engineer contact you via international telephone conference
or via face to face mutual video conference.

All above service is free.
The service cost in customers` country was not included if requires oversea service.

2.About The Warranty:
Answer: One year warranty. Within one year, the initial parts or elements of the machine broke down cause by the raw material and our hand work, Shenzhen Hengxing Machinery Factory would replace the parts freely, but the freight charge and the consumable parts like die, cutting mould were not included. The warranty is not valid if the machine damage due to customers` wrong operation or caused by force majeure factors.

3.How to order raw material ?
Answer: We can help you to find raw material supplier, and also we can help you to order if need. And if possible, we will arrange the machine and the raw material sending to you together.

4..Do you have any other model ?
Answer: Of course . We have different choice for you, and if all our models that`s not what you want, and you can tell us your details and we can custom make for you. Or OEM is available.

5.What is the power supply?
Answer : Normally, there are 220v and 380v, and if you need other choice, just tell us, and we can custom make for you. Or OEM is available.

6.Is this machine need a mould ? Then what kind of mould should it be? How can I sure the mould is what I need?
Answer: Yes, it needs mould, Cost will be base on the size.




Looking for ideal Blister Thermoforming Machine for Plastic Tray Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Plastic Thermoforming Machine for Plastic Tray are quality guaranteed. We are China Origin Factory of Vacuum Thermoforming Machine for Plastic Tray. If you have any question, please feel free to contact us.
