Custom made automatic blister vacuum thermoforming machine

    Unit Price: USD 24500 - 30000 / Set/Sets
    Payment Type: L/C,Money Gram,Western Union
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days

Basic Info

Model No.: HX-76HZ

Automation: Automatic

Raw Material: ABS

Shaping Mode: Die Molding

Application: Machinery & Hardware, Food & Beverage, Medical, Toys, Commodity, Textiles, Chemical, Apparel

Driven Type: Electric

Computerized: Non-Computerized

Size: The Color And Size Of The Machine Can Be Customized

Capability: High Efficiency And Energy Saving

Features: Automatic Exit Of Hot Stove When It's Power Cut.

Additional Info

Packaging: Wooden case

Productivity: 60 set/sets per year

Brand: HENGXING

Transportation: Ocean,Land

Place of Origin: Yonghong road 43 Liulian Fumin industrial zone, Pingdi Town,Longgang, Shenzhen, Guangdong, China

Supply Ability: If it is urgent,trying our best to shorten the time and the fastest is 25 days

HS Code: 8477409000

Port: Shenzhen,Guangzhou

Product Description

Custom made automatic blister vacuum thermoforming machine applications

The automatic blister vacuum thermoforming machine mainly used in plastic, battery, household appliances, decoration, stationery, toys, fruit pallets and so on


Custom made automatic blister vacuum thermoforming machine features

1. Automatic exit of hot stove when it's power cut.

2. The blister thermoforming machine adopts independent grouping temperature control: the special dense plane far-infrared ceramic hair piece is assembled with uniform temperature: 50% higher than that of the traditional machine.

3. The whole machine adopts all imported electrical appliances and international famous factory pneumatic components. The quality is absolutely reliable, safe and durable.

4. Professional manufacture of blister vacuum thermoforming machine and other types of machinery, has a wealth of experience.

5. Professional engineers conduct one-on-one mentoring or training.

6. Professional customer service personnel answer for 24 hours online.

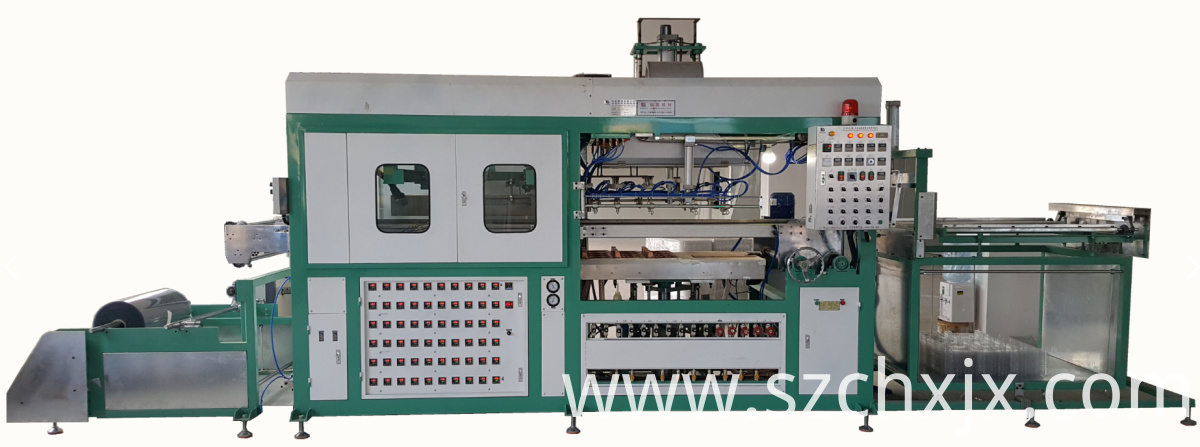

Custom made automatic blister vacuum thermoforming machine

Custom made automatic blister vacuum thermoforming machine

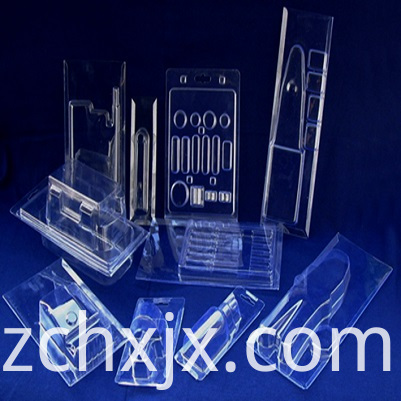

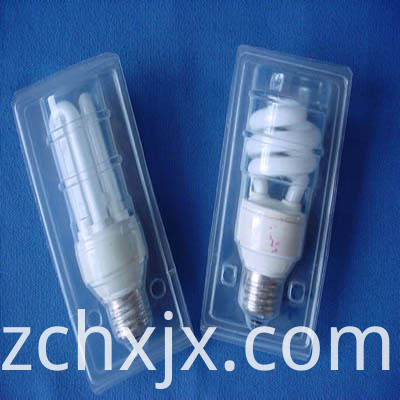

Molding and Samples

Molding and Samples Molding and Samples

Molding and Samples Molding and Samples

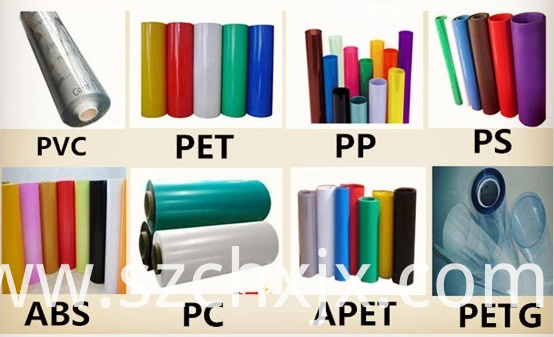

Sutiable materials

Suitable materials



Our advantages

Shenzhen Hengxing Machinery Factory was established in 1998, is a Blister Forming Machine, High Frequency Welding Machine and Vacuum Forming Machine manufacturer. Which is located at Yonghong road 43 Liulian Fumin industrial zone, Pingdi Town,Longgang, Shenzhen, Guangdong, China.

We are the leading manufacturer that specializes in designing and manufacturing different kinds of Blister Forming Machine, High Frequency Welding Machine and Vacuum Forming Machine with the experience of more than 20 years, Our products hold high reputation by the clients in the world wide with the high quality and favorable price.


Oversea Service

1. Kyrgyzstan customer purchased many machines and our engineer went to train the workers.

Oversea Service

2. Thailand customer purchased many machines and our engineer went to train the workers.


Oversea Service


Packing & Delivery

Packing & Delivery


Overview
Quick Details
Condition: New
Type: Blister Forming Machine
Plastic Type: PVC, PE, PET, PETG, PP, PC, PS, HIPS, APET etc
Product Type: Blister
Automatic: Yes
Place of Origin: Guangdong, China (Mainland)
Brand Name: HENGXING
Model Number: HX-76HZ
Voltage: AC380
Power(W): 30.0KW
Weight: 3000KG
Dimension(L*W*H): 7490*1770*2700mm
After-sales Service Provided: Engineers available to service machinery overseas
Color: Green and White
Vacuum pump: 100m³/H
SupplyAbility
SupplyAbility: 60 set/sets per Year High quality Fully Automatic Plastic Blister Forming Machine
Packaging & Delivery
Packaging Details: Wooden case
Port: Guangzhou or Shenzhen
Lead Time : 30days


Custom made automatic blister vacuum thermoforming machine parameters

Model

HX-76HZ

Power supply

AC380 50/60HZ

Power

30.0KW

Forming length

1250mm

Forming width

420~760mm(adjustable)

Productivity

1~10times/min

Thickness of material

0.1~0.15mm

Machine size

7490*1770*2700mm

N. weight

3000KG

Imported famous brand accessories

Configuration Advantage

1

Vacuum pump

Germany Rietschle 100m³/H

2

Cooling-water machine

Japanese Dongyang

3

Frequency converter

Japan MITSUBISHI

4

Touch screen

Taiwan Delta

5

PLC

Taiwan Delta

6

Solenoid valve

Japan CKD

7

Lubricating filter

Japan CKD

8

Straight through valve

Italy CEME

9

Contactor

Korea JS

10

Air switch

Korea JS

11

Encoder

Japan NEMICON

12

Voltage regulator

Hong Kong AOYI

13

Heat transfer

Hong Kong AOYI

14

Cylinder

ZHICHENG


FAQ

1.If I order this blister forming machine, and how can l learn to operate it? Do you offer any help? Would it be charged?
Answer: Shenzhen Hengxing Machinery Factory will provide our after sales service to our customers. Once you get the machine, meanwhile you will get our operation instruction which would detailed explain all about the machine operation. Besides, our operation video is available for your operation reference. If either instruction or video can not help you, and we will arrange the our engineer contact you via international telephone conference
or via face to face mutual video conference.

All above service is free.
The service cost in customers` country was not included if requires oversea service.

2.About The Warranty:
Answer: One year warranty. Within one year, the initial parts or elements of the machine broke down cause by the raw material and our hand work, Shenzhen Hengxing Machinery Factory would replace the parts freely, but the freight charge and the consumable parts like die, cutting mould were not included. The warranty is not valid if the machine damage due to customers` wrong operation or caused by force majeure factors.

3.How to order raw material ?
Answer: We can help you to find raw material supplier, and also we can help you to order if need. And if possible, we will arrange the machine and the raw material sending to you together.

4..Do you have any other model ?
Answer: Of course . We have different choice for you, and if all our models that`s not what you want, and you can tell us your details and we can custom make for you. Or OEM is available.

5.What is the power supply?
Answer : Normally, there are 220v and 380v, and if you need other choice, just tell us, and we can custom make for you. Or OEM is available.

6.Is this machine need a mould ? Then what kind of mould should it be? How can I sure the mould is what I need?
Answer: Yes, it needs mould, Cost will be base on the size.



Looking for ideal Automatic Blister Vacuum Thermoforming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Blister Vacuum Thermoforming Machine are quality guaranteed. We are China Origin Factory of Blister Thermoforming Machine. If you have any question, please feel free to contact us.
