Semi auto double stations blister vacuum forming machine

    Unit Price: USD 5500 - 5800 / Set/Sets
    Payment Type: L/C,Money Gram,Western Union
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 20 Days

Basic Info

Model No.: HX-61A

Size: The Size Of The Machine Is Customizable

Application: Suitable For PVC, PE ,PP, PET, PETG, Etc, Machinery & Hardware, Food & Beverage, Medical, Toys, Commodity, Textiles, Chemical, Apparel

Fitness: Suitable For Small Batch Production

Automation: Automatic

Raw Material: PVC

Shaping Mode: Die Molding

Driven Type: Electric

Computerized: Non-Computerized

Additional Info

Packaging: Wooden case

Productivity: 200 set/sets per year

Brand: HENGXING

Transportation: Ocean,Land

Place of Origin: Yonghong road 43 Liulian Fumin industrial zone, Pingdi Town,Longgang, Shenzhen, Guangdong, China

Supply Ability: If it is urgent,trying our best to shorten the time and the fastest is 15 days

HS Code: 8477409000

Port: Shenzhen,Guangzhou

Product Description

Semi auto Double Stations Blister Vacuum Forming Machine applications

Double head Plastic Vacuum Forming Machine can make various shape af plastic which can be used in hardware tool, stationary, lock, daily-used articles, electric appliance, lamps, automobile and motorcar fittings, handcraft articles and health articles as well as molded plastic architectural plate, food box, cup and dish, etc.
And this doule stations Blister Vacuum Forming Machine is the third generation advanced semi-automatic plastic make-up machine in China. The level of automation is high (one person can operate dual work station at same time);homogeneously control temperature, besides conventional PVC materials, the film roasting is suitable for PP.PET.POF.OPP.PS,etc environmental materials, and the effect is especially outstanding.


Semi auto double stations blister Vacuum Forming Machine features

1. The double head vacuum thermoforming machine is suitable for SRF and less quantity shrink cover production.
2. Far infrared ray heating system, micro-adjustable temperature control, stable temperature.
3. With fast speed fan cooling system
4. Easy to operate, timely sample, less shrink plastic and cost saving.
5. Being able to assemble with upper mould.

6. Double mould plates design, the heat furnace can heat to the two mold plate respectively. The working efficiency is nearly twice as fast as that of the single mould plate machine.

7. 25pcs ceramic infrared heating boards which can be controlled separately, suit for different size or different thickness material.

8. Manual and Semi-auto style.

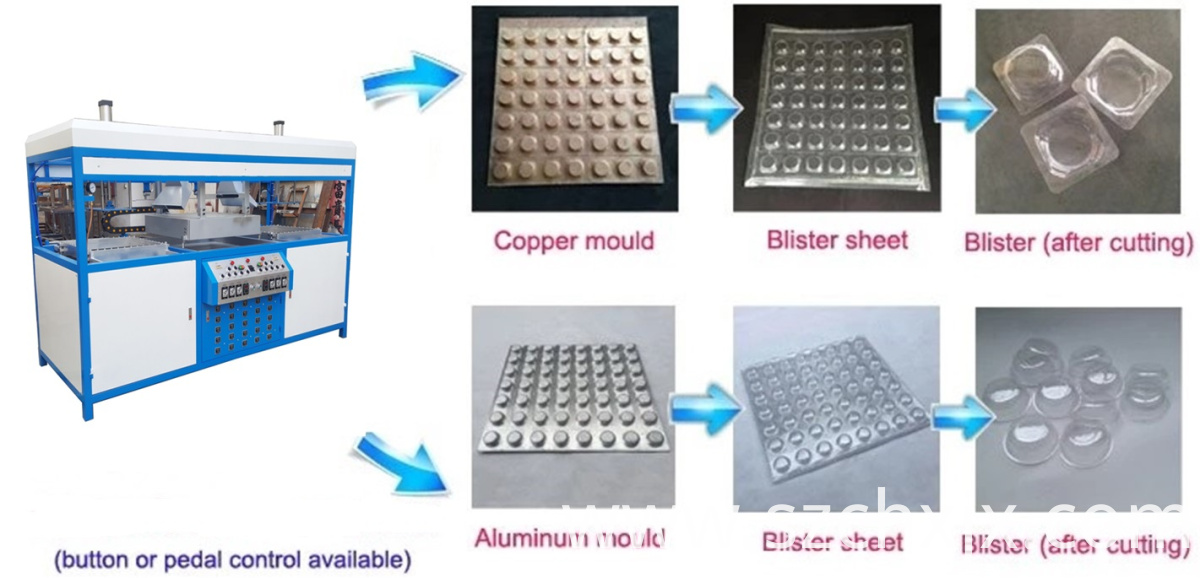

Semi auto double stations blister vacuum forming machine working principles

Semi auto double stations blister vacuum forming machine working principles




Overview

Quick Details

Processing Type: Plastic Thermoforming Machine
Condition: New
Product Type: Plastic Sheet
Place of Origin: Guangdong, China (Mainland)
Brand Name: HENGXING
Model Number: HX-61A
Voltage: AC380
Power(W): 13.0KW
Dimension(L*W*H): 2700*1200 *2000mm
Weight: 1200KG
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Color: Blue and White
Vcuum pump: 40CBM/H

Heater: 500W*25

Packaging & Delivery

Selling Units: Single item
Single package size: 270X120X200 cm
Single gross weight: 800.0 KG
Package Type: Wooden case
Lead Time : 20


Semi auto double stations blister vacuum forming machine parameters

Model
HX-61A
Power supply
AC380V 50/60HZ
Power
13.0KW
Max. forming size
560*610mm
Max. forming height
200mm
Speed
300~500moulds/H
Thickness of material
0.2~1.5mm
Machine size
2700*1200 *2000mm
N. weight
1200KG

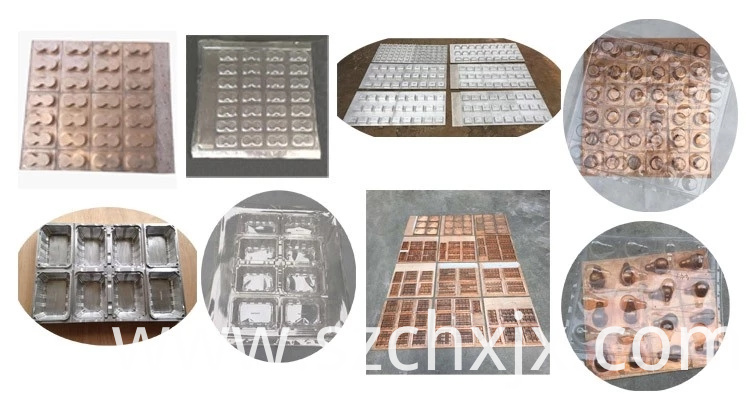

Molding and Samples

Molding and Samples



Suitable materials

Suitable materials


Factory

Factory




Factory informations

Shenzhen Hengxing Machinery Factory was established in 1998, is a Blister Forming Machine, High Frequency Welding Machine and Vacuum Forming Machine manufacturer. Which is located at Yonghong road 43 Liulian Fumin industrial zone, Pingdi Town,Longgang, Shenzhen, Guangdong, China.

We are the leading manufacturer that specializes in designing and manufacturing different kinds of Blister Forming Machine, High Frequency Welding Machine and Vacuum Forming Machine with the experience of more than 20 years, Our products hold high reputation by the clients in the world wide with the high quality and favorable price.


Packing & Delivery

Packing & Delivery

FAQ

1.How I can install the machine? How I can operation the machine?
Answer: The machine is install easy, We have the install video, manual ship with the machine together, the video with the engineer teach you how to installl the machine after open the Plywood case, step by step. The manual have the drawing to explain with you of the all Button funtion.We also support via face to face mutual video conference.

2.What is the machine Guarantee ?
Answer: Guarantee: one year. Shenzhen Hengxing Machinery Factory can replace only the elements that are imperfect for material or handwork. Replacement is free and ex factory. All imperfect elements have to be delivered within 12 months (carriage paid). Guarantee excludes every worn or torn parts. Replacement handwork is excluded and it will be done by the buyer. The supplier is not responsible for any rewards for, damages or last earnings met by buyer. Guarantee is not valid if the machine is used the wrong way or it is not serviced as shown in our technical handbook.

3. How to order raw material ?
we know many raw material factory , we also can purchase for you . just info us thickness , number (50kgs/roll).Raw material will ship with machine to you .

4.Do you have other model ?
Answer: Yes, . we have difference modle of small fully automatic type (HX-61H) and more bigger forming area fully automatic (HX-76HD) for you . We als can according your require to design, making OEM.

5.Is this machine need mould ?
Answer: yes it need mould . Mould will need according your sample or 3D drawing to making!!

Looking for ideal Double Head Plastic Vacuum Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Double Stations Blister Vacuum Forming Machine are quality guaranteed. We are China Origin Factory of Double Head Vacuum Thermoforming Machine. If you have any question, please feel free to contact us.
