High Frequency Welding Machine for large PVC tent applications
1. Fit for welding PVC/PVC, PVC/Card, special plastic material (PE, PS, PC, PET and APET) .
2. This high frequency welder for PVC tent is suitable for all kind of need High output, high presure. Such as Large folder, leather pattern, PVC bag, PVC Pattern, watercolor boxt etc.
High frequency welding machine for large PVC tent features
1. Steady frequency: This high frequency welder for PVC sealing strictly adopts industrial wave band 27.12/40.68 MHz according to the provision of nations "radio interference committee"(CISPR) with steady frequency device and prevent the leak of magnetism, have no interference about the outside environment.
2. Spark restrains system: This high frequency welder for canvas has high sensitive Spark restraint electro-circuit can check out the imbalance current which can bring spark and cut it off, meanwhile alert the operator.
3. Manually adjust the mould by the four corners horizontal adjustment, adjust die easily.
4. International standard industrial band of 27.12 MHz.
5. Stepless temperature heating system, make work more efficient.
Suitable materials

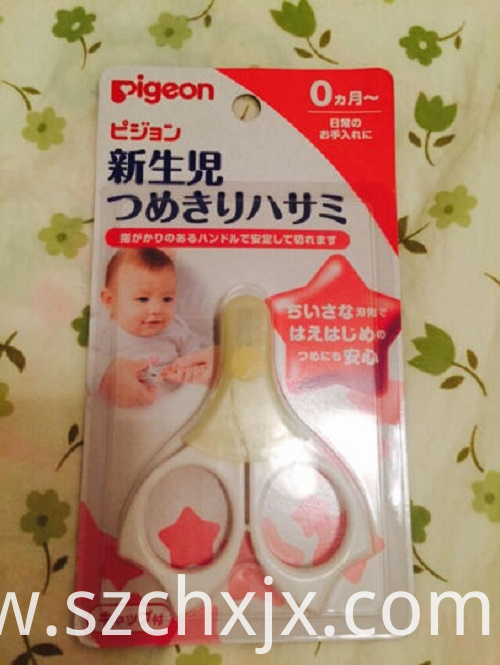

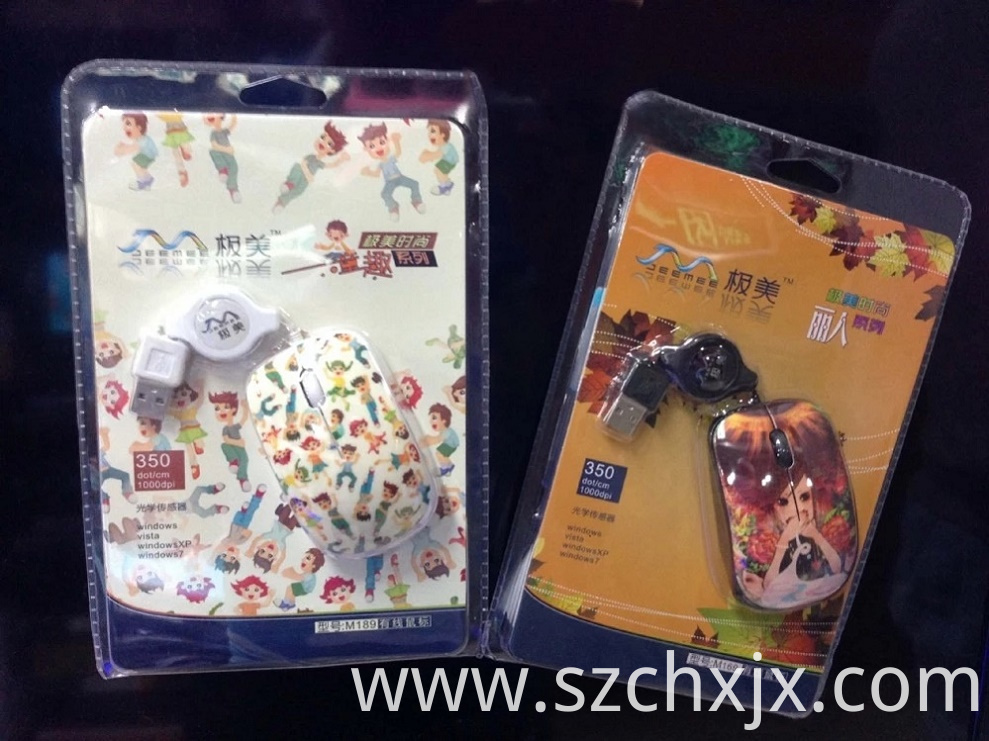

Forming samples
Specification of plastic welding machine
ATTRIBUTES | HX-5000T | HX-5000T-A | HX-5000A | HX-5000S | HX-8000S |
Output Power | 5000W | 5000W | 5000W | 5000W | 8000W |
Input Power | 8KW | 8KW | 8KW | 8KW | 12KW |
Power Voltage | 220V/AC or 380V/AC 50HZ |
Oscillation frequency | 27.12MHZ |
Rectifier | Silicon Diode |
Way of pressure | Pedal-driven of Pneumatic |
Oscillation tube | 7T85RB | 7T85RB | 7T85RB | 7T85RB | 7T69RB |
Size of disc | 400×750 | 400×750 | 395×600 | 395×600 | 600×800 |
Gap of electrodes | 150 | 150 | 250 | 250 | 250 |
Size of machine | 1680/1080/ 1370 | 1680/1080/ 1650 | 1000/670/ 1730 | 1000/2000/ 1730 | 1720/2600/ 1830 |
Mechanic movement distance | 60 | 60 | 160 | 160 | 160 |
Note | | | | | |
All models 8KW-100KW shall be custom-made. These products are to be improved, altered of modified without prior notice. |
About our factory
Shenzhen Hengxing Machinery Factory specializing in the production of Blister Forming Machine, high frequency plastic welding machine,Vacuum Forming Machine Blister Sealing Machine, Blister Folding Machine,Blister Punching Machine and Shrink Packing Machine and other machines. As one of the major industrial brands, HENGXING offers R&D, manufacture, sales one stop service .Since its inception, HENGXING has grown with its business partners and absorbed foreign advanced technology and experience and with our unique innovation idea and constantly make improvement of production, and we get lots of praise from customers at home and abroad. HENGXING is one of the leading brand in this area.
Located in developed economy and convenient transportation Longgang District Shenzhen. HENGXING, with its internal complete management system, serve our customer with advanced technology, professional skills and thought-full after-sales service. HENGXING always value customer`s feedback and grab the market dynamics, and constantly improve product quality and develop new product.
"Unity, dedication, innovation and development" is the main spirit of HENGXING, "Integrity-based, quality first" is our business principles. HENGXING is committed to offer customers a stable quality products in a reasonable price.
Our advantages
1. Professional engineer for guidance and staff training.
2. 24 hours online answer for customer service personnel.
3. One year warranty.
4. We have been engaged in plastic suction machine for more than 20 years, and have rich experience.
5. Our workers are very professional, with rich experience and ability to deal with problems.
6. Assemble video, Working video, Setting video. Normally, customer can assemble and operate the machine correctly with these manuals and videos.
Packing and Delivery
Overview
Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: HENGXING
Model Number: HX-5000A
Voltage: 380V
Power: 5KW
Frequency: 27.12MHZ
Welding Area: 460*610mm
Dimensions: 1000*1360*1740mm
Weight: 400/430KG
Usage: Welding
After-sales Service Provided: Overseas third-party support available
Welding material: PVC&PVC , PVC&Paper card ,Paper card&Paper card
Vibration tub: 7T85RB
preforming time: 0.1-3' s
Aplication: Suitable for welding Blister&Blister, Blister&Paper card, Paper card&Paper card. Widely used in stationery, toys, electronic products, hardware, cosmetic etc.
welding time: 0.1-3' s
horn journey press: 80mm
type: plastic welding machine
SupplyAbility
SupplyAbility:200 Set/Sets per year
Packaging & Delivery
Packaging Details: Wooden case
Port: Shenzhen or Guangzhou
Lead Time :In 10 days after receiving the deposit and comfirming the sample
High frequency welding machine for large PVC tent parameters
Model | HX-5000A |
Power supply | 380V/50HZ |
Output Power | 5000W |
Oscillation frequency | 27.12MHZ |
Working speed | 400-600 pcs/H |
Rectifier | Silicon Diode |
Vibration tub | 7T85RB |
Gap of electrodes | 250mm |
Max Welding area | 460*610 mm |
Machine size | 1000*670*1650 mm |
Weight (N/G) | 400/430KG |
FAQ
1.If I order this machine, and how can l learn to operate it? Do you offer any help? Would it be charged?
Answer:
Shenzhen Hengxing Machinery Factory will provide our after sales service to our customers. Once you get the machine, meanwhile you will get our operation instruction which would detailed explain all about the machine operation. Besides, our operation video is available for your operation reference. If either instruction or video can not help you, and we will arrange the our engineer contact you via international telephone conference or via face to face mutual video conference.
All above service is free.
The service cost in customers` country was not included if requires oversea service.
2.About The Warranty:
Answer:
One year warranty. Within one year, the initial parts or elements of the machine broke down cause by the raw material and our hand work, Shenzhen Hengxing Machinery Factory would replace the parts freely, but the freight charge and the consumable parts like die, cutting mould were not included. The warranty is not valid if the machine damage due to customers` wrong operation or caused by force majeure factors.
3.How to order raw material ?
Answer:
We can help you to find raw material supplier, and also we can help you to order if need. And if possible, we will arrange the machine and the raw material sending to you together.
4..Do you have any other model ?
Answer:
Of course . We have different choice for you, and if all our models that`s not what you want, and you can tell us your details and we can custom make for you. Or OEM is available.
5.What is the power supply?
Answer :
Normally, there are 220v and 380v, and if you need other choice, just tell us, and we can custom make for you. Or OEM is available.
